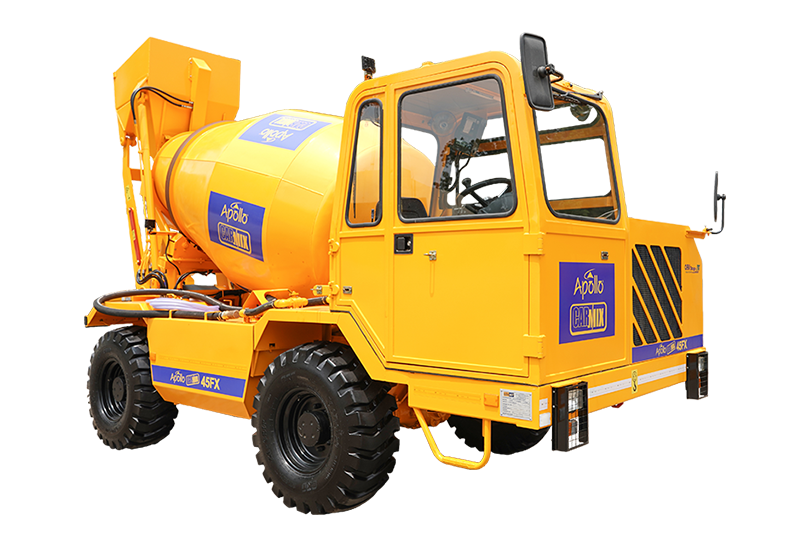

Apollo Carmix 45 FX

SALIENT FEATURES OF SELF LOADING MIXER 45FX

  • Capacity : 4.5 cum / per batch
  • Concrete Output @ 85 to 90% of the rated capacity (Considering 1 cum = 2400 Kg. MAX) Slump S1
  • Operation is user-firendly
  • Compact & Economic
  • Low Maintenance Cost
  • 4 Wheel drive and 4 wheel steer
  • Electronic weighing system with printer
  • Efficient and reliable after-sale service
  • Ideal solution, whenever & wherever small quantity of concrete is required
  • Self-Articulated hydraulically operated shovel for a more accurate loading of aggregates and cement
  • High pressure washing system for better cleaning
  • Fully balanced equipment
  • Oil-bath built-in disc brakes: no maintenance at all and totally reliability
  • Electronic Weighing system to certify 100% quality of concrete
  • Compact & economic
  • Low Maintenance Cost
  • High pressure water pump
  • 4 Wheel drive and 4 Wheel steer
  • Electronic weighing system with printer
  • Efficient and reliable after-sales service
  • Apollo Carmix selects the best suppliers in order to assure its customers not only with top quality but also their best after-sale network

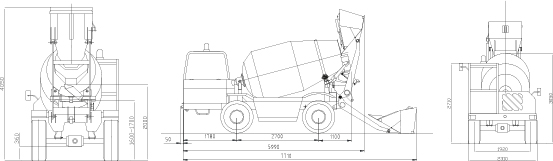

SELF LOADING MIXER 45 FX Diagram

Download Brochure (PDF) Self Loading Mixer 45FX

Download

Product Specifications - Self Loading Mixer 45FX

  • Mixing Unit:
    Concrete output @85 to 90% of the rated capacity
    Drum Volume : 6100 ltrs
    Capacity per batch : 4.5 Cu.M
  • Engine:
    Kirloskar Oil Ltd.
    Model : 4R 1190 TA (Turbo Charged)
    Ratings : 110 HP@2200 rpm
    BS-IV, CRDI Technology,Water cooled
  • Speed (Electric Servo Control):
    Working Speed : 0 to 9 Kms/hr
    Road Transfer : 0 to 26 Kms/hr
  • Loading Shovel:
    600 ltrs
  • Tyres (Off Road Type):
    Size : 16/70-20 PR 16
  • Chassis:
    Steel profile specially engineered for off-road
  • Driving Seat:
    Reversible seat with automatic inversion of hydraulic
  • Steering:
    Hydraulic. 3 Way.
    Radius (internal) : 1925 mm
    Radius (external) : 4310 mm
  • Tanks (Capacities):
    Water : 2x580 ltrs
    Diesel : 130 ltrs
    Hydraulic Oil : 80 ltrs
  • Weight:
    Equally distributed on both axles
    7640 Kgs
  • Electric System:
    12 Volt. 120 Ah battery for electric starter and road lighting Safety battery cut-off
  • Chute:
    Slewing and hydraulically tilting
  • Water System:
    Self contained Water Pump, Water Meter, Washing Outlet
  • Gradient:
    Fully loaded 30% (16-18 degrees)

FAQs - Self Loading Mixer 45 FX

The Apollo Carmix 45 FX offers numerous advantages, including a high capacity of 4.5 cubic meters per batch, user-friendly operation, precise electronic weighing system, and efficient loading and mixing processes. It ensures high-quality concrete production on-site, reduces labor costs, and improves project timelines.

The Apollo Carmix 45 FX Self Loading Mixer operates by using a self-articulated hydraulically operated shovel to load aggregates and cement into the drum. The materials are mixed in the drum, and the concrete is discharged through a hydraulically tilting chute. The machine features an electronic weighing system to ensure precise mixing and high-quality concrete output.

Key features of the Apollo Carmix 45 FX include a 4.5 cubic meter capacity per batch, compact and economical design, low maintenance cost, 4-wheel drive and steer, electronic weighing system with printer, high-pressure washing system, oil-bath built-in disc brakes, and a fully balanced design. It also offers efficient and reliable after-sales service.

The Apollo Carmix 45 FX is ideal for small to medium-sized construction projects due to its high capacity, user-friendly operation, and efficient performance. It provides precise concrete mixing, reduces labor costs, and ensures consistent quality, making it a practical and economical choice for various construction sites.

The price of the Apollo Carmix 45 FX concrete mixer machine varies depending on specific configurations and additional features required. As a leading manufacturer in India, Apollo Carmix offers competitive pricing and high-quality equipment, ensuring excellent value for investment. For the best price, it is recommended to contact Apollo Carmix directly or visit their official website.

Apollo Carmix is a leading manufacturer of concrete mixer machines in India due to its commitment to quality, innovation, and customer satisfaction. They use top-quality components, offer advanced features like electronic weighing systems, and provide reliable after-sales service. Their products are designed to meet the needs of various construction projects, ensuring efficient and high-quality concrete production.

OPTIONAL FOR SELF LOADING MIXER

  • Load Cell System [Only in 45 FX]
  • Additive Tank
  • IOT device Vehicle Health Monitoring System
  • Rear view Camera

SELF LOADING MIXER

  • Swivelable driver post with 180° for complete visibility during driving as well as complete visibility for loading side during weighing & batching, mixing and discharge operations
  • Self articulated hydraulically Operated shovel with gate for managing excessive material & accurate loading
  • Hydraulically operated discharging chute
  • Washing system for better cleaning
  • Oil-Bath Built-in Disc Breaks : No maintenance at all and total reliability
  • Electronic Weighing system for more accuracy to certify 100% quality Concrete
