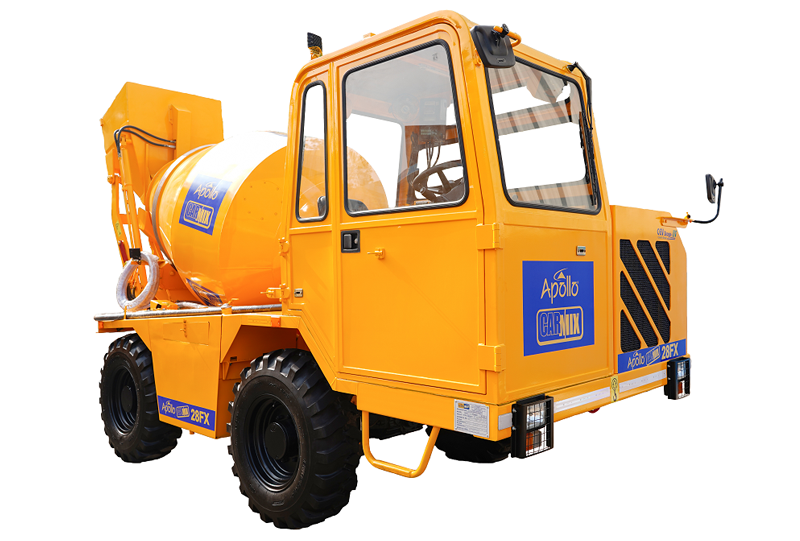

Apollo Carmix 28 FX

SALIENT FEATURES OF SELF LOADING MIXER 28FX

  • Capacity : 2.8 cum / per batch
  • Concrete Output @ 85 to 90% of the rated capacity (Considering 1 cum = 2400 Kg. MAX) Slump S1
  • Operation is user-firendly
  • Compact & Economic
  • Low Maintenance Cost
  • 4 Wheel drive and 4 wheel steer
  • Electronic weighing system with printer
  • Efficient and reliable after-sale service
  • Ideal solution, whenever & wherever small quantity of concrete is required
  • Self-Articulated hydraulically operated shovel for a more accurate loading of aggregates and cement
  • High pressure washing system for better cleaning
  • Fully balanced equipment
  • Oil-bath built-in disc brakes: no maintenance at all and totally reliability
  • Electronic Weighing system to certify 100% quality of concrete

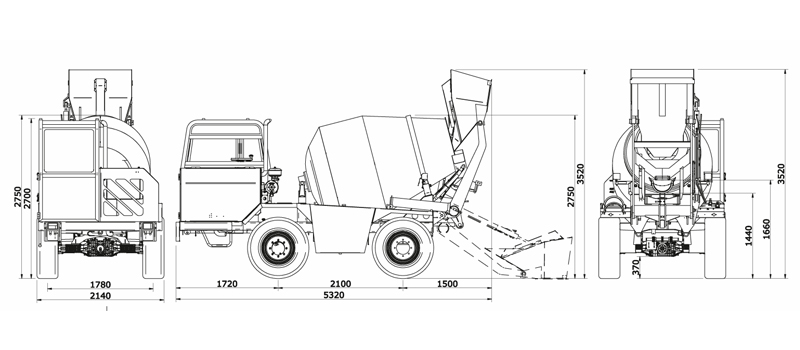

Self Loading Mixer 28FX Diagram

Download Brochure (PDF) Self Loading Mixer

Download

Self Loading Mixer 28FX Specifications

  • Mixing Unit:
    Concrete output @85 to 90% of the rated capacity
    Drum Volume : 3820 ltrs.
    Capacity per batch : 2.8 Cu.M.
  • Engine:
    Mahindra & Mahindra>
    Model : MCVNC35TIO74CE4A
    Ratings : 74 HP@2200 rpm
    BS-IV, CRDI Technology,
  • Speed (Electric Servo Control):
    Working Speed : 0 to 10 Kms/hr
    Road Transfer : 0 to 27 Kms/hr
  • Loading Shovel:
    400 ltrs
  • Tyres (Off Road Type):
    Size : 12.5-20 PR 12
  • Chassis:
    Steel profile specially engineered for off-road
  • Steering:
    Hydraulic. 3 Way.
    Radius (internal) : 4450 mm
  • Tanks (Capacities):
    Water : 2x225 ltrs
    Diesel : 95 ltrs
    Hydraulic Oil : 70 ltrs
  • Weighing:
    Equally distributed on both axles
    5700 Kgs..
  • Electric System:
    There were 12. 180 Ah
    battery for electric starter and road lighting. Safety battery cut-off
  • Chute:
    Slewing and hydraulically tilting
  • Water System:
    Self contained Water Pump, Water Meter, Washing Outlet
  • Gradient:
    Fully loaded 30% (16-18 degrees)
  • Driving Seat:
    Reversible seat with automatic inversion of hydraulic steering circuit

FAQs for Self-Loading Concrete Mixer 28 FX

A self-loading concrete mixer is a compact and versatile machine that combines concrete batching, mixing, and transportation into one. It features a self-articulated hydraulic shovel for precise loading of aggregates and cement, ensuring a hassle-free and efficient concrete production process.

Self-loading mixers are perfect for sites where small quantities of concrete are required, such as rural construction projects, road repairs, or small-scale infrastructure works. They are cost-effective, compact, and easy to operate.

These mixers are equipped with an electronic weighing system that ensures precise measurement of materials for consistent concrete quality. Some models also feature built-in printers for batch certification.

Designed with a sturdy steel chassis, 4-wheel drive, off-road tyres, and hydraulic steering, self-loading mixers are highly capable of navigating rugged terrains and challenging construction sites.

They integrate multiple functions, such as self-loading of materials, water metering, high-pressure cleaning systems, and hydraulically tilting chutes for smooth concrete discharge, reducing the need for additional equipment and manpower.

Self-loading mixers are designed for low maintenance. Features like oil-bath disc brakes require minimal upkeep, and built-in high-pressure washing systems make cleaning the equipment quick and efficient.

Apollo combines innovative design, robust engineering, and reliable after-sales service. Their self-loading mixers are known for user-friendly operation, durability, and excellent performance in both urban and remote construction settings.
